What’s Involved in Car Evaporator Replacement?
Introduction
If your car’s air conditioning suddenly stops blowing cold air, there’s a good chance the evaporator could be the culprit. Unlike replacing a battery or swapping out a filter, evaporator repairs are among the most complex and labour-intensive jobs in automotive air conditioning. Many vehicle owners are surprised at the cost, but once you see what’s actually involved, it all makes sense.
This guide will walk you through:
- What an evaporator is and why it fails
- The parts involved in a replacement
- Why it’s such a labour-heavy repair
- Vehicles that use dual evaporators (front and rear)
- Which cars need full dash removal vs easier access
By the end, you’ll have a clear understanding of why this isn’t a “quick fix” job—and why choosing a skilled workshop matters.
What is a Car AC Evaporator?
The evaporator core is a key part of your vehicle’s air conditioning system. It sits inside the cabin (usually behind the dashboard), where refrigerant expands and absorbs heat from the air. The result? Cool, dehumidified air is blown through the vents to keep you comfortable.
When the evaporator develops a leak, blockage, or corrosion, the AC system can no longer function properly. At this point, replacement is usually the only option.
What’s Involved in Replacing an Evaporator?
1. Major Dash Disassembly
For most modern vehicles, the evaporator is buried deep behind the dashboard. To access it, technicians often need to:
- Remove the entire dashboard assembly
- Disconnect electrical harnesses, airbags, vents, and trim panels
- Access the HVAC housing (heater/AC box) where the evaporator sits
This alone can take 6–10 hours of skilled labour depending on the car.
2. Evacuating and Regassing the System
Because refrigerant is pressurised, the AC system must be:
- Professionally evacuated (gas recovered safely)
- System flushed if contamination is suspected
- Regassed with the correct refrigerant (R134a, R1234yf, etc.) after reassembly
3. Replacing Seals, O-Rings, and Other Components
Evaporator replacement isn’t just about swapping one part. Technicians usually also replace:
- O-rings and seals (to prevent leaks)
- Cabin air filter (if contaminated)
- Sometimes the TX valve or expansion valve (works closely with the evaporator)

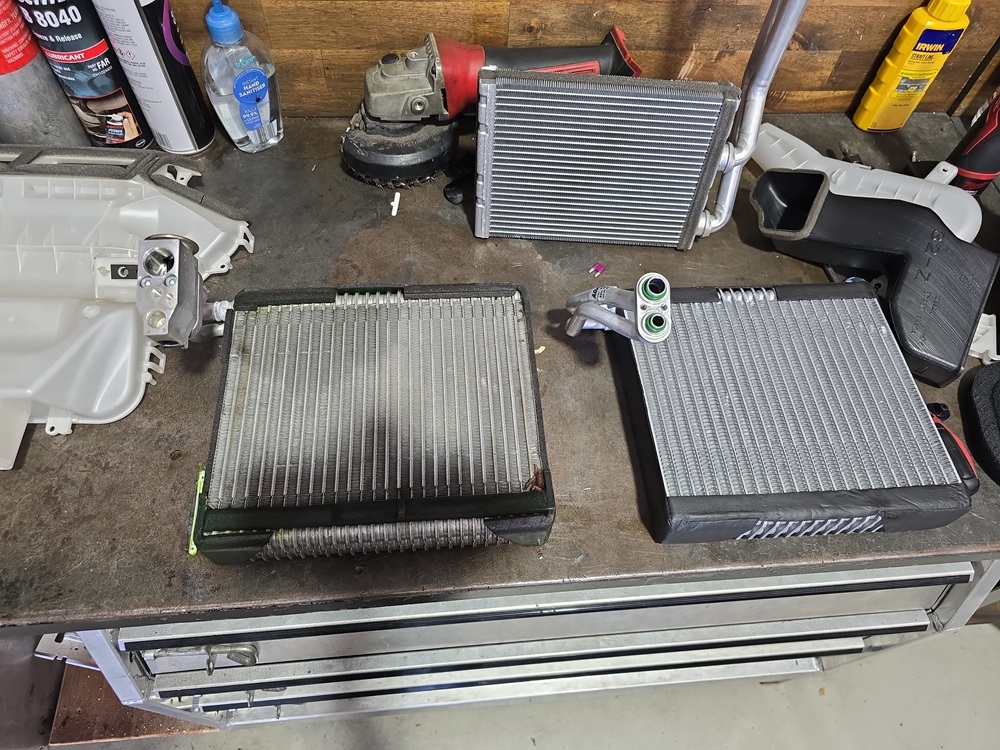

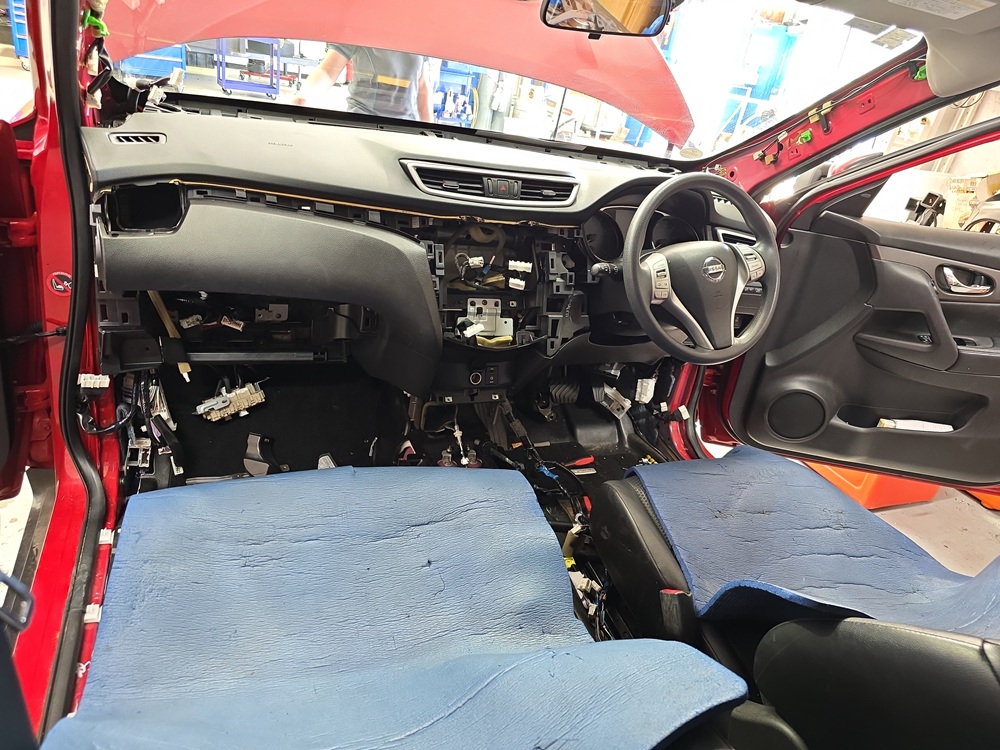

4. Reassembly and Testing
After fitting the new evaporator:
- The dash is carefully reinstalled
- Electronics, sensors, and airbags are reconnected
- System is pressure tested, vacuum tested, and recharged
- Cabin airflow and cooling performance are verified
Why Car Evaporator Replacement Cost is High
The evaporator itself is not usually the most expensive component—labour is the main factor. With most jobs taking a full day’s work (sometimes longer), the cost reflects the hours and technical skill required. This is why a quote for evaporator replacement can run into the thousands, not just a few hundred dollars.
Cars with Dual Evaporators (Front & Rear)
Some vehicles—particularly SUVs, 4WDs, people movers, and luxury cars—feature two evaporators:
- A front evaporator for the driver and front passengers
- A rear evaporator for passengers in the second or third row

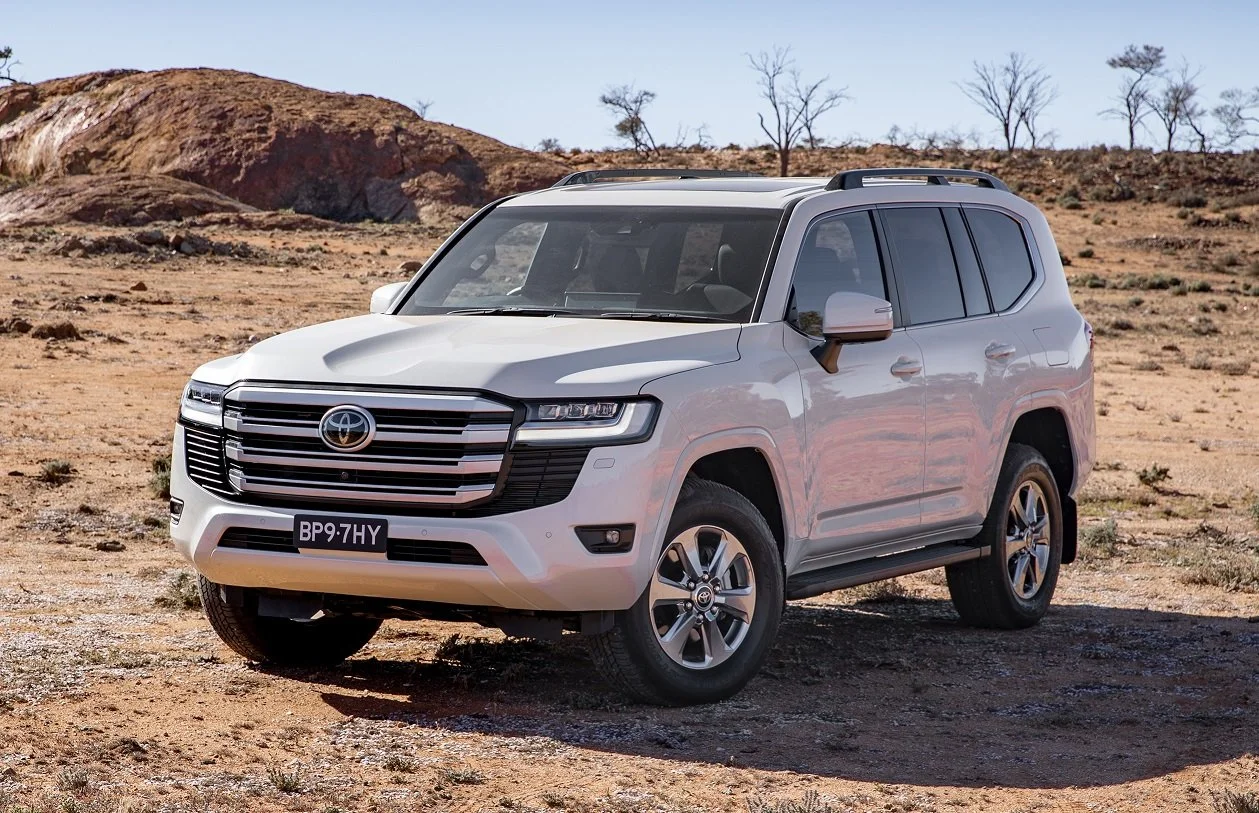

Examples include certain Porsche Cayenne models, Toyota LandCruisers, Nissan Patrols, and larger American SUVs.
This adds extra complexity because:
- Both units may need attention if there’s a leak
- Additional pipework runs to the rear of the car
- Diagnosis can take longer
Vehicles That Are Easier (and Harder)
- Most modern sedans, SUVs, and hatchbacks → Full dash removal required.
- Some utes and vans (and certain older cars) → Easier access panels exist, making the job less labour-intensive.
- European luxury vehicles (Audi, BMW, Mercedes, Porsche) → Often the most complex, due to tight packaging and extra electronics behind the dash.
Key Takeaways
- Evaporator replacement is one of the biggest AC jobs. It requires removing the dash, HVAC housing, and multiple system components.
- Labour is the real cost driver. A typical job can take a full working day or longer.
- Some vehicles have dual evaporators. SUVs and large 4WDs may require servicing both front and rear units.
- Not every car needs dash removal. A minority of vehicles allow easier evaporator access, but they’re the exception.
Final Word
If you’ve been quoted a high price for evaporator repair, now you know why. It’s a complex, time-consuming job requiring skill, precision, and the right equipment. The good news? Once replaced properly, a new evaporator can last for many years, restoring icy-cold comfort to your car.
Whether you’re in Australia or abroad, the process is almost identical, and understanding what’s involved helps you appreciate the work (and cost) behind keeping your cabin cool.
